Dialogue and the stage

This page is about the two things you do most: writing a line, and dressing the scene it happens in. Both live inside a Dialogue Node, as blocks. If you have not read Blocks reference, the short version is: blocks run top to bottom, and only a Dialogue block stops and waits for the player.

The pattern for almost every scene is the same. Set the stage, then talk.

Backdrop         bedroom
Show character   Maya, expression "happy", position Left
Dialogue         Maya: "You are finally awake."
Dialogue         (no speaker): "The light through the curtain was already yellow."

The backdrop and the character appear in the same instant the first line does. The player sees a dressed scene, not a slideshow of it being built.

The Dialogue block

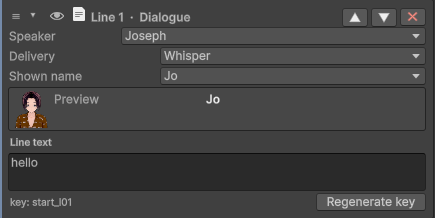

A Dialogue block: speaker, text, delivery state and alias

The speaker

Pick the character from the dropdown. Their name plate, their name colour, their portrait and their font all come from the character definition — you do not repeat them per line.

Leave the speaker empty and the line is narration. No name, no portrait, just text. That is the whole mechanism; there is no separate narrator character to create.

The text

Type the line. The editor stores it under a localization key and manages that key for you; you never see a key unless you go looking. Translating the line later is a separate job, done in the Localization tab — see Localization.

Text can contain [token] terms that resolve to a variable or a dictionary entry at runtime, so a line can say the player’s name or the city they chose. See The dictionary.

The delivery state

The Delivery field says how the line is delivered: Normal, Whisper, Shout, Thinking, or any state you invent. Empty means Normal.

A delivery state is not decoration in the block. It is a lookup into the speaking character’s delivery styles, and a style can change:

The style can setEffect on the line
FontA different TMP font for this state.
Text colourOverrides the character’s normal body colour.
Font size multiplierFor example 1.3 to make a Shout physically bigger.
Name prefix / suffixDecorates the name plate, for example “Maya (thinking)”.
Text effectNone, Wave, Shake, Fade or Pulse, animated on the text at runtime.

So Shout on Maya can mean a bigger, red, shaking line, and Whisper can mean a small, grey, breathing one — and you get both by picking a word in a dropdown, once you have defined the styles on the character. A character with no style for a state falls back to their defaults.

Delivery styles are authored per character. See Characters.

The display-name alias

The Display name alias field shows the speaker under a different name for this line only.

The classic use: the player has not been introduced yet, so the mysterious woman speaks as “The Stranger” for two chapters. You still author her as Maya — same character, same variables, same expressions — and every line simply carries the alias. The moment she introduces herself, you stop setting the alias, and she is Maya from then on.

The alias comes from the character’s alias list. It changes nothing else: not her id, not her name anywhere else, not the value of @char:maya:@name.

Note The alias is per line. To change a character’s name permanently — because the player renamed them, or because they were unmasked — use the Character name block instead. It writes a persisted override.

Several speakers: Say together

The Say together block (palette category Dialogue) is one line said by two to five characters at once — a shout from the whole party, a couple answering in unison. The name plate joins their names, each in its color, and the text is split into one run per speaker in their text colors: by words, or by letters for a short line. No portrait is shown.

A Say together block whose speakers come down to fewer than two real characters plays as a normal line. In the text script it is mia & alex "Run!".

The stage

The stage has three independent channels: the backdrop, the characters, and the props. Each keeps its current value until a block of the same channel changes it. You never repeat the backdrop.

Every change lands instantly, unless a Transition (with) block before the line says otherwise: a dissolve, a fade, a wipe. See Visual transitions and screen effects.

The stage in game: backdrop, two characters and the dialogue box

Backdrop

A backdrop is either sprite layers or a video. It cannot be both.

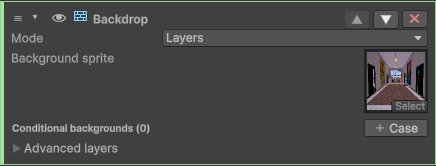

A Backdrop block with its sprite and transition

Layers is the normal case. Up to five sprite layers, each with:

  • a sprite,
  • an order (0 is drawn furthest back),
  • an offset,
  • a parallax factor (0 = static, 1 = moves fully with the camera),
  • an optional list of conditional sprites.

Conditional sprites are how one backdrop becomes four. You give the layer an ordered list of cases, each with a condition; the first case whose condition passes wins, and if none do, the layer’s default sprite is used. A bedroom layer with cases for time.daypart == Night and time.daypart == Evening is a bedroom that darkens by itself, with no extra blocks anywhere in the story. An empty condition always passes, so a case with no condition acts as a catch-all — put it last.

Video mode replaces the layers with a video clip:

OptionWhat it does
ClipThe video.
LoopRepeat when it reaches the end.
MuteSilence the clip’s own audio track.
Volume0 to 1, when not muted.
Play on enterOn by default: the video starts as soon as the backdrop becomes active. Turn it off to start it yourself from code.

Warning An empty Backdrop block does nothing. It does not go to black — it is skipped, and the previous backdrop stays. To remove the background, use the Clear > Backdrop block.

Show character

Puts a character on stage, or replaces them if they are already there.

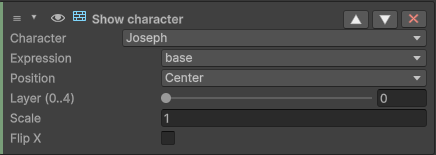

A Show character block: character, expression and position

OptionWhat it does
CharacterWho walks on.
ExpressionWhich stage sprite to use. Empty = the character’s default expression, the first in its list.
PortraitOptional. Sets a UI portrait different from the stage expression. Empty = the portrait follows the expression.
PositionLeft, CenterLeft, Center, CenterRight, Right, or Custom (a normalized X from 0 to 1).
ScaleSize multiplier. Use it for distance.
FlipMirrors the sprite, so one sprite faces both ways.
LayerSlot 0 to 4. Higher is drawn in front. Two characters at the same anchor need different layers, or they overlap.
OutfitOptional. Puts an outfit on the character in the same line.

A Show character block with nothing to offer — no character, an unknown one, or one without expressions — is ignored: the scene stays as if the block were not there, and its card in the inspector says so. Choosing a character gives the block that character’s first expression.

Who is on stage is independent of who is speaking. A character can speak without being on stage, and stand on stage for a whole scene without saying a word.

Expression

Changes the expression of a character who is already on stage. It is lighter than a second Show character block, and it is what you use between lines.

It has one extra option worth knowing: also set the portrait. Turn it on and the block sets the dialogue box portrait too — either to a portrait key you name, or to the character’s default portrait if you leave it empty. That lets the stage sprite and the little head icon disagree on purpose, which is useful when the character is turned away, or hiding what they feel from everyone but the player.

Hide character

Takes one character off the stage. The others stay.

Props

Props are loose foreground or background images layered over the backdrop — a table, a falling leaf, a window frame. A Props block sets the whole prop set at once, and each prop has the same options as a backdrop layer, conditional sprites included.

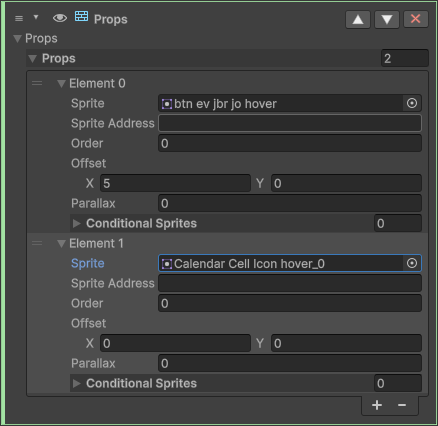

A Props block with a couple of props placed

The three Clear blocks

BlockWhat it removes
Clear > CharactersEvery character, or just the one in a given position (anchor plus layer).
Clear > BackdropThe background, sprite layers or video. This is how you go to black.
Clear > PropsEvery prop.

They are the only way to blank a channel. Assigning nothing to a Backdrop, Show character or Props block does not clear it — it skips the block.

The expression and portrait fallback chain

You will not draw every expression for every character, and you do not need to. On the stage, the chain is:

the expression you asked for -> the character’s default expression (the first in its list)

So a character with a single expression still works everywhere: ask for angry, get the default, and the game runs. Nothing errors, nothing goes pink. A Show character block naming a missing expression warns once in the console. Draw the angry sprite later and every line that already asked for it starts showing it. One edge worth knowing: an expression entry that exists but has no sprite assigned counts as art — it shows nothing rather than falling back.

Portraits walk their own chain: the portrait key you asked for, then the character’s first portrait. If the character has no portrait at all, the dialogue box hides the portrait panel — it never borrows the stage sprite. A character with stage art but no portrait art simply speaks without a portrait.

Expressions and portraits are set up per character in Characters; expressions built from layers, in Layered expressions.
